GRC Dome Installation Dubai: Mosques, Villas, and Commercial Structures

GRC (Glass Reinforced Concrete) dome installation in Dubai is a specialized service commonly used to enhance the architectural, traditional, and aesthetic appeal of mosques, luxury villas, and commercial buildings. Leading providers in the UAE, such as Zahrat Masafi Fiber Glass and AL JILANI FIBER GLASS INDUSTRIAL LLC, offer end-to-end solutions, including design, manufacturing, and installation of these lightweight, durable structures

What Is GRC Dome Installation in Dubai?

GRC dome installation in Dubai is the process of manufacturing, transporting, and mounting dome structures made from Glass Fiber Reinforced Concrete (GRC) onto mosques, residential villas, and commercial buildings across the UAE.

GRC – a composite of Portland cement, fine aggregate, and alkali-resistant (AR) glass fibers – is the dominant choice for architectural dome construction in Dubai. Here is why it leads the market:

• It weighs up to 85% less than traditional concrete, making it structurally feasible on virtually any existing building.
• It resists Dubai’s extreme UV radiation, coastal humidity, thermal cycling, and Shamal wind abrasion without degrading.
• It shapes into any curved profile or Islamic ornamental pattern with a level of detail no other affordable dome material can match.
• It is non-combustible (Class A1), meeting Dubai Civil Defence fire compliance requirements for interior commercial applications.
• It is cost-effective – 60 to 75% cheaper per m² than equivalent carved natural stone.

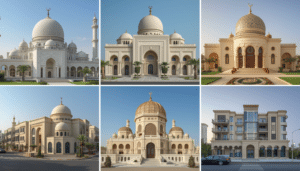

GRC dome installation in Dubai serves three primary structure types:

Structure Type	Primary Use	Typical Dome Diameter
Mosques	Islamic ornamentation, community and Friday prayer halls	3m to 25m+

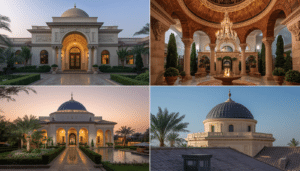

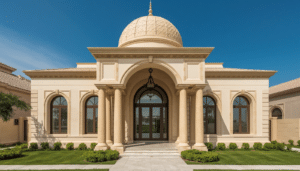

Residential Villas	Entrance porticos, majlis ceilings, garden pavilions	1.5m to 5m
Commercial Buildings	Hotel lobbies, mall atriums, government buildings	8m to 20m+

This guide covers all three structure types – with technical depth, Dubai-specific regulatory clarity, and the honest cost context that most guides deliberately avoid.

Why Dubai’s Architectural Identity Is Built on Domes

Stand anywhere along Sheikh Zayed Road at golden hour and look beyond the towers. Rising above the flat rooftops of villas, punctuating the silhouette of five-star hotels, and crowning the minarets of neighbourhood mosques – domes are everywhere. Dozens of them, from modest 1.5-metre villa entrance cupolas to grand 20-metre mosque canopies spanning communities in Deira, Business Bay, and Jumeirah.

They look like carved stone. They look ancient, weighty, and permanent. Almost every single one of them was fabricated in a UAE factory, segmented into transportable panels, trucked to site, lifted by crane, and fixed into place in a matter of days.

That is the quiet revolution behind Dubai’s dome-heavy skyline – and the material making it possible is GRC (Glass Fiber Reinforced Concrete).

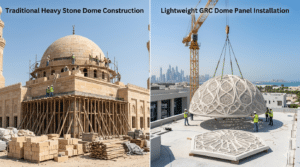

What Changed When GRC Arrived

For decades, achieving a domed structure in Dubai meant one of three compromises:

• Expensive imported stone that imposed enormous structural loads on the building below.
• Slow in-situ concrete casting that consumed weeks of site time and scaffolding.
• A visible reduction in ornamental quality when cheaper alternatives were substituted.

GRC eliminated all three constraints at once. It opened dome architecture to:

• Mosque committees working within tight donation budgets.
• Villa owners seeking a prestige entrance feature.
• Commercial developers who need a landmark architectural moment without over-engineering their structural slab.

But here is what most GRC dome guides in Dubai miss entirely: getting a GRC dome right is not simply about choosing the material. It is about understanding what each structure type demands – from acoustic management inside a mosque to rooftop slab load limits on a villa – and navigating the complete process from Dubai Municipality permit submission through to the final sealant coat.

This guide covers all of it.

What Is GRC? The Material Behind Dubai’s Dome Revolution

GRC (Glass Fiber Reinforced Concrete) is a composite building material made from Portland cement, fine sand aggregate, water, and alkali-resistant glass fibers. In Dubai, it is the dominant choice for dome construction because it is lightweight, weather-resistant, and can be shaped into any curved form or ornamental pattern with precision that no other affordable dome material can replicate.

How Is GRC Made? The Two Manufacturing Methods Used in Dubai

GRC stands for Glass Fiber Reinforced Concrete – concrete reinforced with glass fibers rather than steel bars. The glass fibers must be alkali-resistant (AR glass), as standard glass dissolves over time in cement’s high-pH environment. AR glass fibers make up around 5% of the total mix by weight, as specified by the GRCA (Glass Fiber Reinforced Concrete Association).

GRC dome contractors in Dubai use two primary manufacturing methods:

Spray GRC

• Glass fibers and cement slurry are sprayed simultaneously onto a mold in thin, overlapping layers.
• Builds up a shell of 10 to 15mm thickness.
• Produces lightweight panels with a smooth, consistent face finish.
• Faster to produce and more economical for large surface areas.
• Best suited for larger mosque and commercial domes where minimising weight is the primary concern.

Premix GRC

• Chopped glass fibers are blended into the cement mix before casting or pressing into the mold.
• Produces denser panels of 15 to 25mm thickness.
• Captures finer surface detail in complex ornamental mold profiles.
• Slightly heavier but significantly richer in ornamental capability.
• The preferred method for mosque domes requiring deep muqarnas, arabesque patterns, and calligraphic friezes.

Quality Control After Manufacturing:

After production, every GRC dome panel must go through the following before leaving the factory:

1. A mandatory 28-day curing period in controlled factory conditions.
2. Flexural strength testing per ASTM C1230 (Standard Test Method for GRC).
3. Factory production control per BS EN 1169 (Glass-Fibre Reinforced Cement).
4. Test certificates generated and filed for every production batch.

Any contractor compressing this curing window to reduce lead times is compromising the structural integrity of the final product.

Why Dubai’s Climate Makes GRC the Only Logical Choice

Dubai’s environment is not simply hot. It presents one of the most architecturally aggressive combinations of environmental stresses found anywhere globally – and each of those stresses determines how dome materials perform over decades.

Four Environmental Threats That GRC Handles Better Than Any Alternative:

UV Radiation

• Dubai records UV index readings in the extreme range from May through September.
• Standard fiberglass (FRP/GRP) domes begin yellowing, chalking, and micro-cracking within 5 to 8 years.
• GRC coated with alkali-resistant elastomeric silicone paint maintains surface integrity for 40+ years of Gulf sun exposure without yellowing or chalking.

Thermal Cycling

• Dubai building exteriors move from 15°C on January nights to 48°C+ on July afternoons.
• GRC’s thermal expansion coefficient of 8 to 12 × 10⁻⁶ per °C sits far closer to concrete and masonry substrates than FRP.
• This means joints and fixings experience significantly less differential movement stress over time, preventing cracking at connection points.

Coastal Humidity

• Areas like Palm Jumeirah, JBR, Dubai Marina, and the entire coastal strip present chloride-laden environments that corrode steel reinforcement in traditional concrete within years.
• GRC contains no embedded steel – glass fibers carry all reinforcement – eliminating the rust-and-crack failure mode that routinely affects standard reinforced concrete in coastal UAE locations.

Shamal Wind and Sand Abrasion

• Dubai’s periodic Shamal winds carry fine sand particles at speed, gradually abrading soft surface materials.
• GRC’s hard cementitious face withstands this particle abrasion far better than painted FRP or composite alternatives.

GRC vs. GRP vs. Natural Stone – The Honest Material Comparison for Dubai Domes

Anyone sourcing a dome in Dubai will face three material options. Here is the comparison that matters for UAE conditions specifically.

Want to understand the full technical difference between GRC and GRP materials for your project? The differences in durability, fire classification, and UV performance are worth reviewing before requesting any quotation.

Property	GRC Dome	GRP / Fiberglass Dome	Natural Stone Dome
Weight per m²	15–25 kg	5–10 kg	80–150 kg
Relative Cost	Medium	Low–Medium	High
Dubai UV Resistance	Excellent (40+ years)	Moderate (5–8 years)	Excellent
Ornamentation Complexity	Very High	High	Medium
Fire Classification	Non-combustible (A1)	Combustible	Non-combustible
Installation Speed	Fast – prefab panels	Fast	Slow – in-situ
UAE Lifespan	40–50 years	15–25 years	100+ years
Maintenance Interval	5–7 years (repaint)	3–5 years	10+ years
Structural Load on Building	Low	Very Low	Very High

How to read the table by your structure type:

• Mosque: GRC wins clearly on ornamentation detail, non-combustibility, 40+ year service life, and weight.
• Villa: GRC and GRP are cost-competitive at supply stage, but GRC holds its finish significantly longer under Dubai’s UV intensity.
• Commercial: GRC is the only viable option for interior applications requiring Dubai Civil Defence fire compliance – GRP is combustible and cannot meet the Class A requirement.
• Natural Stone: Structural load requirements make it impractical on most existing Dubai buildings without major and expensive slab reinforcement.

Is GRC the Same as GFRC?

Yes – GRC and GFRC are identical materials made from the same constituents, performing to the same standards.

• GRC = standard term used in the UK, Europe, the Middle East, and the UAE.
• GFRC = preferred in North America.

Every UAE contractor uses the term GRC. If a supplier quotes for a GFRC dome, request their GRCA membership documentation to confirm the product meets the same manufacturing standards.

GRC Dome Installation for Mosques in Dubai

GRC domes are the preferred material for mosque dome construction in Dubai because they accurately replicate Islamic geometric ornamentation, resist the UAE’s extreme climate without degradation, and weigh significantly less than traditional concrete – reducing structural load on mosque walls. Community mosques in Dubai require domes from 3 to 6 metres in diameter. Grand Friday mosques may need 12 to 25 metres or larger. All mosque construction and modification in Dubai requires prior written approval from the Islamic Affairs and Charitable Activities Department (IACAD) before any work begins.

Why the Mosque Dome Is Never Just an Architectural Decision

In Islamic design tradition, the dome – Al-Qubbah – represents the vault of heaven. Its spherical geometry carries a lineage of meaning traced from the Dome of the Rock (691 CE) through the Ottoman mosques of Istanbul to the grand contemporary mosques of the Gulf.

Why this heritage matters practically for GRC dome installation in Dubai:

• Proportions must be correct. Classical Islamic geometric ratios – including relationships derived from the square root of 2 – govern how dome height relates to drum diameter. A GRC contractor must understand these proportional rules before producing a single shop drawing.
• Ornamentation must be precise. The Islamic visual vocabulary of muqarnas, arabesque, and calligraphic friezes must be accurately replicated, not approximated.
• IACAD enforces these standards legally. Under Administrative Resolution No. 83 of 2020, any person wishing to build, alter, or maintain a mosque in Dubai must obtain prior written IACAD approval. Stop-work orders and demolition orders have been issued for mosque modifications carried out without this approval.

Technical Specifications for GRC Mosque Dome Installation in Dubai

GRC mosque domes in Dubai fall into three practical size categories – each with different structural, logistical, and budgetary implications:

Small Community Masjid Domes (3m to 6m diameter)

• Serve neighbourhood prayer halls and awqat mosques across Dubai.
• Often manufactured as a single piece or two segments – no complex on-site assembly required.
• A 4-metre GRC mosque dome typically weighs 400 to 600 kg total.
• Standard mobile crane equipment is sufficient for lifting at this scale.
• Structurally straightforward for new mosque construction; drum wall assessment still required on existing structures.

Medium Friday Mosque Domes (6m to 12m diameter)

• Manufactured in 4 to 8 segments, each within road transport and crane lifting limits.
• Panel-to-panel joints become a critical waterproofing and engineering detail at this scale.
• A 10-metre diameter dome at 12mm spray thickness weighs approximately 1,800 to 2,500 kg across all panels.
• Still significantly lighter than an equivalent traditional concrete dome, which would impose 14,000 kg or more.
• Requires a mobile crane, traffic management planning for delivery, and pre-installed stainless steel bracket systems.

Grand Mosque and Landmark Domes (12m to 25m+ diameter)

• Require an independent structural engineering report – not simply a contractor’s shop drawing.
• GRC at this scale is not self-supporting. An engineered steel space frame carries the primary structural load.
• GRC panels act as the architectural cladding envelope on the steel sub-frame.
• The GRC dome contractor and the structural engineer must collaborate from the very first stage of design, not sequentially.
• Logistics require RTA oversized load permits, crane operations on public roads, and a site safety plan.

The Acoustic Problem Inside GRC Mosque Domes That Nobody Explains

Almost every GRC dome article published in Dubai ignores this entirely, yet it directly affects the congregation’s experience at every single prayer time.

The problem: A smooth hemispherical interior GRC dome surface will focus reflected sound toward a central point below, creating echo and severe speech intelligibility problems during the khutbah (Friday sermon) and communal prayer.

This is physics, not a design failure – and the solutions are well-established:

• Perforated GRC interior panels with acoustic insulation backing – reduces the dome’s reflective surface area significantly.
• Ribbed or faceted interior surface profiles – scatter sound energy in multiple directions rather than concentrating it at a focal point.
• Suspended acoustic baffles below the dome interior – absorb excess reverberation after installation.

Why this must be specified at the design stage:

1. Retrofitting acoustic treatment inside a completed mosque dome is highly disruptive and costly.
2. The acoustic solution affects the interior GRC panel specification – it cannot be bolted on later.
3. If not addressed, the mosque committee will receive complaints from the congregation within the first week of use.

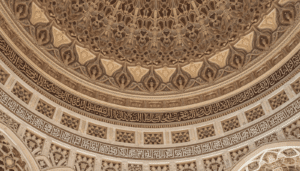

How Islamic Geometric Ornamentation Is Cast Into GRC Mosque Domes

The four main ornamental elements and how each is produced:

1. Muqarnas – Three-Dimensional Stalactite Vaulting

• Machined directly into GRC molds using CNC (Computer Numerical Control) routing of expanded polystyrene blanks.
• Achieves museum-quality geometric precision.
• Replicates in days what traditional stone carving required master craftsmen months to produce.
• Requires premix GRC method for the richest detail capture.

2. Arabesque and Geometric Surface Patterns

• Cast into the dome panel face mold as raised or recessed surface texture.
• Alternatively applied after installation as a GRC render layer using custom profile tools.
• Choice of method depends on the required depth of relief and total ornamented surface area.

3. Quranic Calligraphy Friezes

• Manufactured as separate GRC banding panels for the dome drum.
• The calligrapher’s original artwork is faithfully translated into the mold and reproduced as a continuous decorated ring around the drum circumference.
• Requires close collaboration between the calligraphic artist, the designer, and the GRC mold fabricator.

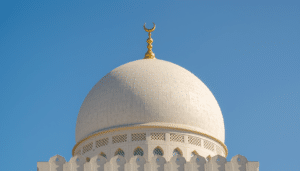

4. The Hilal (Crescent Finial) at the Apex

• Metalwork in stainless steel or powder-coated aluminium, fixed to a cast-in threaded socket embedded in the GRC apex panel during manufacture.
• The apex socket must be designed for the wind load the Hilal will experience at full installation height.
• Typically engineered separately from the GRC scope by a steelwork fabricator.

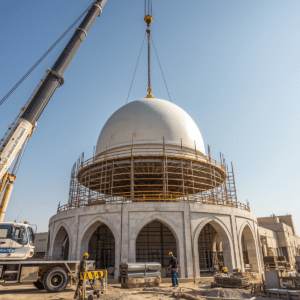

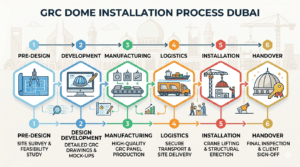

Step-by-Step GRC Mosque Dome Installation Process in Dubai

Total timeline: 8 to 14 weeks from site survey to handover.

Structural Survey of the Drum Wall

• A licensed structural engineer assesses the mosque’s drum wall, pendentives, and roof structure for load-carrying capacity.
• Without this assessment, no dome specification is structurally reliable.
• This step is the technical foundation of every decision that follows.

IACAD Design Approval

• Architectural drawings – showing dome geometry, proportions, ornamentation, and material specification – are submitted to IACAD.
• IACAD is required to respond within 15 working days of a completed application.
• This approval always precedes the Dubai Municipality building permit – the two run sequentially, not simultaneously.

Dubai Municipality Building Permit

• Submitted through the Dubai REST digital platform.
• Required documents:
  • Structural calculations stamped by a licensed structural engineer.
  • Architectural drawings showing dome-to-building connection.
  • NOC from the building’s original structural engineer of record.
  • Current Dubai Municipality contractor licence copy.

Shop Drawing Production and Approval

• The GRC dome contractor produces detailed fabrication drawings showing:
  • Exact panel segmentation and numbering sequence.
  • Joint locations and profile types.
  • Fixing bracket positions and anchor specifications.
  • All mold dimensions and ornamental profile details.
• Written sign-off required from both the structural engineer and the client before mold fabrication begins.

Mold Fabrication

• CNC-routed expanded polystyrene molds produced to exact dome geometry.
• For complex muqarnas or dense arabesque patterns, this stage alone requires 2 to 4 weeks.

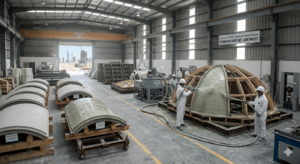

GRC Manufacturing in Factory

• Spray or premix GRC applied to molds under controlled temperature and humidity.
• Each panel built up in multiple passes with visual inspection between each layer.
• Control specimens cast alongside production panels for independent testing.

28-Day Curing and QC Testing

• All panels cure for a minimum of 28 days from the last casting date.
• QC tests conducted on control specimens:
  • Flexural strength per ASTM C1230.
  • Fiber content per BS EN 1170.
• Test certificates generated and filed before any panel leaves the factory.

Transport to Site

• Panels wrapped, crated, and transported on flatbed vehicles.
• For panels exceeding standard road width: RTA oversized load permit required – add 3 to 5 days.

Joint Grouting and Waterproofing

• Panel joints filled with flexible GRC slurry over a foam backer rod.
• Entire exterior dome surface receives an elastomeric waterproofing membrane – minimum 2mm dry film thickness.
• This is the single most critical long-term performance step – and the one most frequently omitted on budget-driven projects.
• Skipping the membrane is the primary documented cause of GRC dome delamination in the UAE within 3 to 5 years.

Exterior Finish Coat

• Minimum two coats of elastomeric silicone paint rated for Gulf UV exposure.
• Standard mosque dome colours in Dubai: white, off-white, cream, and light gold.

Final Inspection and Handover

• Structural engineer final site inspection and sign-off certificate.
• Contractor provides complete handover package:
  • As-built drawings updated to reflect any field modifications.
  • Maintenance manual covering inspection cycles and sealant replacement schedules.
  • Separate warranty certificates for the GRC shell material and the installation fixing system.
• Authority completion inspection where required by IACAD and Dubai Municipality.

Five Critical Mistakes That Ruin GRC Mosque Dome Projects in Dubai

Selecting the cheapest contractor without verifying the structural fixing design.

• The GRC shell is only half of a dome.
• The bracket and anchor system connecting it to the building is equally important.
• Any credible contractor provides a structural engineer’s stamped approval of the fixing design before a contract is signed.

Skipping the drum wall structural assessment.

• The dome’s full weight transfers through the drum wall below.
• In older mosques, this structure may not have the reserve capacity for additional dome loads.
• A pre-project structural survey is the non-negotiable starting point.

Omitting the waterproofing membrane to reduce cost.

• This decision will cost the mosque considerably more in remediation within 3 to 5 years.
• This is not a theoretical risk – it is a documented pattern across UAE mosque maintenance work.

Ignoring acoustic design until after installation.

• A mosque dome that creates multi-second echo during prayer is not fit for purpose.
• Acoustic design must be included in the design brief from day one.

Beginning construction without written IACAD approval.

• Under Executive Council Resolution No. 25 of 2013 and its amendments, IACAD has full legal authority to issue stop-work orders and mandatory demolition notices.
• No timeline pressure or cost saving justifies this risk.

GRC Dome Installation for Residential Villas in Dubai

GRC domes are widely installed across Dubai’s residential villa communities as feature elements at main entrances, above majlis sitting rooms, over garden pavilions, and as rooftop decorative cupolas. Villa domes typically range from 1.5 to 5 metres in diameter. GRC delivers the visual impact of natural stone at a fraction of the weight and cost, with full freedom over surface texture, colour, and internal finish. Installing a GRC dome on an existing villa requires a structural engineer’s written confirmation of roof slab capacity before any production begins.

The Dubai Villa Dome Trend – What Is Driving It

Dubai’s villa residential market has always had a strong appetite for architectural distinction. In communities such as Emirates Hills, Arabian Ranches, Al Barari, Tilal Al Ghaf, and Palm Jumeirah villas, the exterior of a home is a visible statement of taste and investment level.

The four design influences currently driving villa dome choices in Dubai:

• Classical Islamic architecture – domes echoing regional heritage, with muqarnas and arabesque surface ornament.
• Mediterranean villa aesthetics – lower-profile elliptical cupolas with smooth painted finishes over entrance porticos.
• Neo-classical designs – egg-and-dart cornices, Corinthian column elements, and symmetrical proportions.
• Contemporary architectural features – clean geometric profiles with integrated LED lighting and minimal ornamentation.

GRC accommodates all four styles from the same manufacturing process.

The property value argument for villa GRC domes:

• A well-executed GRC dome on a villa entrance differentiates the property in a crowded resale and rental market.
• It photographs well for property listings and real estate marketing.
• It signals quality of finish to prospective buyers and tenants – a visible indicator of overall construction standard.
• In master-planned communities, a dome adds architectural identity that flat-facade villas cannot replicate.

The Al Jilani GRC team has delivered GRC dome and facade work across villa communities including Tilal Al Ghaf – Aura Garden Villas for Shapoorji Pallonji, DAMAC Lagoons – Malta, Dubai, Al Barsha Private Villas, and Jumeirah Islands Private Villas – demonstrating that high-specification GRC villa dome installation is routine for experienced UAE contractors.

Four Places Where GRC Domes Are Installed in Dubai Villas

Entrance Portico Domes – 2m to 4m diameter (Most Common)

• Positioned above the main entrance vestibule – the villa’s first architectural impression from the street.
• Typically sits on four columns or pilasters, transferring load to column footings rather than the villa’s roof slab.
• Can be manufactured as a single factory-produced unit at this scale, eliminating on-site assembly complexity.
• Most common surface finish: smooth painted white or cream for contemporary villas; textured limestone effect for heritage-influenced designs.
• Typical timeline from order to installation: 6 to 10 weeks.

Majlis Interior Domes – 3m to 6m diameter

• Installed above the formal reception room ceiling, transforming the room from simply large to architecturally memorable.
• Interior finish options – far more varied than exterior applications:
  • Bare smooth GRC in off-white for contemporary interiors.
  • Hand-painted Islamic geometric or naturalistic ceiling patterns.
  • Faux gold or silver leaf applied over smooth GRC primer.
  • Integrated LED cove lighting – electrical conduit cast directly into the GRC shell during manufacturing.
• The LED conduit detail must be specified upfront – retrofitting electrical services into a completed interior GRC dome is both disruptive and expensive.

Outdoor Garden Pavilion Domes – 2m to 4m diameter

• Poolside pavilion and garden pergola domes face the most demanding weatherproofing conditions of any villa dome application – fully exposed to Dubai sun, rain, and humidity with no building envelope protection.
• Key installation requirements for outdoor pavilion domes:
  • Silicone sealant joints must be inspected annually.
  • Drainage provision at the dome base perimeter must be designed in from the start.
  • Standing water at the dome-to-wall junction is the leading cause of garden pavilion dome failures in the UAE.
  • Full elastomeric waterproofing membrane – not optional, regardless of project budget.

Rooftop Feature Cupolas – 1.5m to 2.5m (Decorative)

• Visible from the street and neighbouring properties, giving the villa a distinctive architectural roofline.
• Typically manufactured as a single piece and fixed to a pre-cast plinth on the roof parapet.
• Dubai Municipality requires a NOC for any rooftop structural addition, including small decorative cupolas.
• Lightweight enough that most existing villa roof slabs can accommodate them with minimal structural intervention.

Customisation Options for Dubai Villa GRC Domes

Surface Texture Options:

Texture	Visual Appearance	Best Suited For
Smooth render (painted)	Clean, contemporary finish	Modern villas, minimal aesthetic
Sand-blasted stone texture	Mimics sandstone or limestone	Heritage-influenced, classical villas
Aged travertine effect	Textured mold with colour wash	Mediterranean and neo-classical designs
Polished marble simulation	Smooth with resin topcoat	Premium majlis and entrance domes

Colour Options:

• Standard palette: Warm whites, creams, and pale beiges – compatible with Dubai Municipality’s approved villa exterior colour palette.
• Custom RAL colour matching: Available for precise façade colour coordination.
• Integral colour GRC: White Portland cement and mineral pigments throughout the mix – eliminates the need for repainting entirely and is the premium long-term specification.
• Community approval note: Villa domes in master-planned communities (Arabian Ranches, DAMAC Hills, Emaar communities) may require community management colour approval in addition to the Dubai Municipality permit.

Interior Finish Options:

• Bare GRC smooth off-white – clean and durable for contemporary interiors.
• Hand-painted Islamic geometric or naturalistic sky motif ceilings.
• Faux gold or silver leaf applied over smooth GRC primer by specialist craftsmen.
• Integrated LED cove lighting – cast-in conduit and junction boxes during GRC manufacturing (must be specified before production begins).

For the final protective coating after dome installation, working with a professional painting contractor in Dubai who has specific GRC surface experience makes a measurable difference to the visual result and long-term coating durability.

Realistic Cost Breakdown for GRC Villa Dome Installation in Dubai

The ranges below reflect Dubai market conditions as of 2025–2026 for fully installed, finished GRC domes – covering GRC shell supply, mold fabrication, transport, installation labour, waterproofing, and paint.

Cost Element	Small (2m dia.)	Medium (3.5m dia.)	Large (5m dia.)
GRC Shell Supply	AED 4,000–7,000	AED 9,000–16,000	AED 20,000–35,000
Custom Mold (one-time)	AED 3,000–5,000	AED 6,000–10,000	AED 12,000–20,000
Transport to Site	AED 500–1,000	AED 800–1,500	AED 1,500–3,000
Installation Labour	AED 2,000–4,000	AED 4,000–7,000	AED 7,000–14,000
Scaffolding / Crane	AED 1,000–2,500	AED 2,500–5,000	AED 5,000–10,000
Waterproofing + Paint	AED 1,500–3,000	AED 2,500–5,000	AED 5,000–9,000
Total Estimated Range	AED 12,000–22,500	AED 24,800–44,500	AED 50,500–91,000

Factors that push costs toward the higher end of the range:

• Complex ornamental molds requiring deep CNC machining – add 30 to 50% to the mold cost line.
• Narrow or obstructed site access requiring specialist rigging rather than standard mobile crane equipment.
• Interior finishing – hand-painted patterns or LED cove integration can add AED 3,000 to AED 15,000 depending on scope.
• Remote villa location or panels requiring an RTA oversized load transport permit.
• Post-installed structural anchor testing – required when slab reserve capacity is marginal.

The mold cost conversation every client must have before signing:

• Always ask contractors to break out mold fabrication as a separately itemised line – some bundle it into shell price, others omit it entirely from initial proposals.
• Confirm whether the mold cost is amortised across multiple identical domes if you plan to install more than one.
• A mold cost presented as a “variation” after contract signing is a contractual red flag.

Structural Requirements Before Installing a Dome on an Existing Dubai Villa

The legal requirement: Dubai Municipality requires a structural engineer’s NOC for any structural addition to an existing building’s roof or external structure. This applies to all GRC dome installations regardless of size.

Three outcomes from the structural assessment:

1. The slab carries the dome loads as-is – fixing design proceeds with post-installed chemical anchors; pull-out load test certificates confirm anchor capacity.
2. The dome requires a standalone structural support frame – load transfers to columns or footings independently of the villa slab. This is the correct approach for heavier or larger domes.
3. The slab requires local reinforcement – least common outcome; occurs on older villas with minimal structural reserve capacity.

Post-installed chemical anchor process (most common villa retrofit method):

1. Chemical anchors are drilled and bonded into existing concrete slabs or beams.
2. Surface-mounted stainless steel bracket system is installed.
3. Pull-out load testing of installed anchors is conducted.
4. Test report is submitted as part of the Dubai Municipality permit documentation.

The one rule to follow without exception: Never accept a contractor’s assurance that a structural assessment is unnecessary for “a small dome.” That assessment protects the villa owner’s investment and safety – not just the regulator’s process.

GRC Dome Installation for Commercial Structures in Dubai

In Dubai’s commercial sector, GRC domes serve as architectural landmark features in hotels, shopping malls, government buildings, and airport terminals. Commercial GRC dome projects require engineered steel sub-frames, fire rating documentation for Dubai Civil Defence, and formal tender or nominated contractor procurement processes. Beyond their structural role, commercial GRC domes function as permanent brand identity assets – generating visual recognition and organic exposure that no media budget can replicate.

Where Are GRC Domes Used in Dubai’s Commercial Buildings?

Hotels:

• Grand lobby focal point domes with diameters of 10 to 20 metres – standard in Dubai’s five-star properties.
• The lobby dome sets the experiential standard for the entire property – it is the first architectural impression after check-in.
• Additional hotel locations include:
  • Rooftop restaurant entrances and feature domes.
  • Porte-cochère vehicle drop-off canopies.
  • Pool deck pavilion structures along Jumeirah Beach Road and the Palm.
  • Spa and wellness pavilion feature domes.

Shopping Malls:

• Atrium skylight domes – serving dual function as architectural landmark and natural daylight management device.
• Translucent or semi-translucent GRC panels with embedded light diffusers allow daylight penetration while managing heat gain.
• Anchor entrance domes at primary mall entrances – among the most photographed architectural elements in Dubai’s retail sector.
• Food court rotunda domes – requiring interior acoustic treatment for noise management.

Government and Civic Buildings:

• Authority headquarters, municipal buildings, court complexes, and cultural centres.
• GRC dome elements signal institutional permanence, cultural identity, and civic presence.
• Typically the most technically demanding projects in terms of design precision, authority documentation, and quality sign-off requirements.

Airport and Transport Infrastructure:

• Passenger drop-off zone canopy domes.
• VIP terminal entrance domes.
• Metro station architectural feature domes.
• Airport applications carry the highest wind load engineering demands – open-site exposure and aircraft wake turbulence create loading conditions significantly beyond typical urban building environments.

How Engineering Requirements Scale for Large Commercial GRC Domes

The structural engineering problem changes fundamentally once dome diameter exceeds 8 metres:

Dome Scale	GRC Behaviour	Steel Sub-Frame	Engineering Level
Up to 6m diameter	Self-supporting GRC shell	Not required	Contractor shop drawing
6m to 10m diameter	Partially self-supporting	Optional – project-specific	Structural engineer review
10m to 20m+ diameter	Cladding only – not self-supporting	Mandatory	Independent structural report

At commercial scale, the engineering requirements expand as follows:

Structural Engineering:

• An independent structural engineering report is mandatory for domes exceeding 10 metres in diameter.
• The fixing system must be designed to ASCE 7 or BS EN 1991 wind load standards.
• For coastal and open-site commercial locations, wind load analysis is critical – a large dome presents a significant sail area in every load direction.
• Steel sub-frame design must account for differential thermal expansion between the steel frame and GRC panels.

Dubai Civil Defence Fire Compliance:

• All interior commercial dome linings must achieve Class A surface spread of flame classification per EN 13501-1.
• Required documentation for Civil Defence submission:
  • Fire test certificates for GRC shell, internal insulation, acoustic treatment, paint system, and LED lighting fittings.
  • Fire and life safety drawings showing dome position relative to evacuation routes and sprinkler coverage.
  • Confirmation that every material in the assembly meets the Class A non-combustible classification.

Acoustic Engineering:

• A 15-metre GRC dome over a hotel lobby or mall atrium without acoustic treatment produces reverberation times of several seconds – making the space uncomfortable and difficult for communication.
• Acoustic modelling should be part of the commercial dome design process from the outset.
• Solutions include: perforated GRC interior panels with acoustic backing, suspended baffles, or ribbed interior surface profiles.

The Tender Process for Commercial GRC Dome Installation in Dubai

Standard procurement routes – from largest to smallest project:

Route	Used For	Evaluation Criteria
Competitive tender	Major commercial – hotel fit-outs, malls	Technical capability, certifications, references, price
Nominated sub-contractor	Medium scale – consultant selects	Design capability, quality documentation, price
Direct award	Smaller commercial	Proven previous performance

What a proper commercial GRC dome BOQ must include:

A Bill of Quantities that bundles costs into a single “supply and install” line cannot be meaningfully evaluated or compared. Every item below must appear as a separately priced line:

1. GRC shell supply rate per m² of dome surface area.
2. Mold fabrication cost – stated separately with amortisation terms.
3. Steel sub-frame design and fabrication.
4. Panel transport, crating, and insurance.
5. Crane hire, rigging, and any RTA permits for crane operation on public roads.
6. Installation labour and on-site technical supervision.
7. Surface finish, waterproofing, and full paint system.
8. Structural engineering fees and ASTM or BS standard QC testing.
9. Mock-up panel fabrication and client approval sign-off process.
10. Warranty terms – stated separately for GRC shell and for fixing system.

Red flags in commercial GRC dome proposals:

• No mock-up panel provision in the scope.
• Fixing system attributed to contractor’s in-house team rather than an independent licensed engineer.
• No QC test certificates referenced in the methodology.
• A single lump sum with no line-item breakdown.
• Lead times that do not allow for the mandatory 28-day curing period.

The Commercial GRC Dome as a Long-Term Brand Asset

A dome visible from Sheikh Zayed Road, Al Khail Road, or Downtown Boulevard registers in the peripheral vision of hundreds of thousands of motorists every week – with no recurring media placement cost.

Consider the brand exposure dimensions:

• On Google Maps street view, the dome is the establishing shot that makes the property instantly recognisable.
• In hotel review photography and travel blog content, the dome is consistently the exterior image that gets shared.
• On Instagram and TikTok, Dubai’s architectural landmarks – including commercial domes – generate enormous organic content creation by visitors and residents.
• Over a 40 to 50-year service life, this brand infrastructure value substantially strengthens the investment case beyond pure construction cost analysis.

GRC Dome Maintenance Planning for Commercial Properties

Treating commercial dome maintenance reactively leads to remediation costs 5 to 10 times higher than preventive maintenance would have cost.

Recommended inspection schedule:

Location Type	Inspection Frequency	Primary Risk
Coastal (Palm Jumeirah, JBR, Marina)	Biannual – April and October	Chloride accelerates sealant and coating degradation
Inland (Downtown, DIFC, Business Bay)	Annual	Standard UV and thermal deterioration

What inspectors must check at every visit:

• Hairline cracking at panel joints – early warning of sealant failure or differential movement.
• Sealant shrinkage, hardening, or debonding – must be caught before water penetration begins.
• Surface efflorescence (white mineral deposits) – indicates water movement through the GRC shell.
• Stainless steel bracket corrosion at exposed fixing points – inferior grade fixings are a known risk.
• Paint film cracking or delamination – UV degradation indicator requiring prompt repainting.

Maintenance cycle benchmarks:

Maintenance Task	Frequency	Notes
Repainting	Every 5–7 years	Every 4–5 years for coastal locations
Joint sealant replacement	Every 7–10 years	Earlier if shrinkage or debonding observed
Structural review	Every 10 years	By a licensed structural engineer
Annual FM budget	AED 15–40/m²/year	For planned inspection and minor maintenance

A professional GRC and GRP maintenance service with documented UAE experience will include a scheduled maintenance programme in the project handover documentation – making lifecycle cost management straightforward from day one.

How to Choose the Right GRC Dome Contractor in Dubai

Choosing the right GRC dome contractor in Dubai is as important as specifying the correct material. The UAE market ranges from highly experienced, GRCA-standard manufacturers to budget operators who undercut on price by compressing curing times, skipping waterproofing, or subcontracting critical installation work. The five verification steps below separate the two categories before any contract is signed.

Five Verification Steps Before Signing Any GRC Dome Contract

GRCA Membership

• The Glass Fiber Reinforced Concrete Association (GRCA), established in 1975, is the international standards body for GRC manufacturing.
• Full GRCA members are annually assessed by an independent external auditor against the GRCA Specification (2021 edition).
• Membership is not a guarantee of perfect execution, but its absence is a legitimate reason for harder questions.

Dubai Municipality Contractor Registration

• Any contractor operating on Dubai construction projects must hold a current Dubai Municipality contractor licence in the relevant trade category.
• Verify this is active before signing – not after.
• Verify online through the Dubai REST platform using the contractor’s trade licence number.

ISO 9001 Certification

• Quality management system certification indicates a controlled, documented manufacturing process with internal audit cycles and corrective action procedures.
• It is the minimum quality framework expectation for any credible GRC dome contractor in Dubai.
• You can review certifications from Al Jilani GRC as a benchmark for what a properly certified UAE GRC contractor’s documentation looks like.

Independent Structural Engineering Partnership

• Ask which licensed structural engineer certifies the contractor’s fixing designs.
• Confirm whether that engineer is independent of the contractor or employed internally.
• An independent structural engineer’s stamp provides a meaningfully stronger quality guarantee than an in-house signatory.

Physical Site Visits to Completed Projects

• Portfolio photography is a starting point only.
• Before committing to any significant GRC dome contract, request the address of a completed project of similar type and scale – and visit it in person.
• On site, look at: joint quality, finish consistency, sealant condition, paint uniformity, and any visible cracking, staining, or delamination.
• A contractor proud of their work will not hesitate at this request.
• You can explore completed GRC projects across Dubai – including mosque domes, DAMAC villa communities, and Jumeirah island properties – to understand what consistent, high-quality UAE GRC dome delivery looks like.

Eight Questions to Ask Any GRC Dome Contractor Before Signing

1. Can you provide a structural engineer’s stamped approval on the dome fixing design?
2. What is your GRC mix design and what AR glass fiber percentage do you use by weight?
3. Do you hold GRCA membership or follow the GRCA Specification (2021 edition)?
4. What QC test standards do you apply – ASTM C1230 or BS EN 1170 – and will test certificates come with the project file?
5. Can you provide references and site visit access for a completed project of similar type and scale?
6. What is the warranty period, and is it stated separately for the GRC shell and the fixing installation?
7. Is your installation crew directly employed or subcontracted, and who supervises on-site work?
8. Who manages the Dubai Municipality permit submission – your team or the client?

The Complete GRC Dome Installation Process in Dubai – Phase by Phase

GRC dome installation in Dubai follows a structured six-phase process from site survey to project handover. The total timeline from initial assessment to completed installation runs 8 to 16 weeks, depending on dome size, ornamentation complexity, and permit approval timelines.

Pre-Design and Authority Assessment (Weeks 1–2)

Two parallel workstreams begin simultaneously:

Physical Site Assessment:

• Topographic survey of the installation location.
• Structural assessment of the existing support structure – drum wall, roof slab, or column footings.
• Access survey for crane positioning and panel delivery routing.
• Identification of underground services or overhead obstructions that affect the installation methodology.

Authority Requirements Identification:

• Confirm which approvals apply:
  • Dubai Municipality – all projects on existing buildings.
  • IACAD – all mosque projects.
  • Dubai Civil Defence – all commercial interior dome applications.
  • TRAKHEES – all free zone projects (JAFZA, Dubai South, DAFZA).
  • DCCA – all projects in heritage zones (Al Fahidi, Deira Heritage Zone, Shindagha).
• Build the approval timeline into the project programme before manufacturing begins.

Design Development (Weeks 2–4)

1. Architectural concept development and client presentation.
2. 3D modelling of dome geometry with panel segmentation clearly shown.
3. Structural engineer engagement for fixing system design and anchor load calculations.
4. Shop drawing production for client and consultant written approval.
5. Authority drawing submission where required by the applicable regulatory body.

This phase cannot be compressed. Changes to dome geometry or ornamentation after mold fabrication begins are expensive. Changes after GRC production begins are significantly more expensive.

Manufacturing and Quality Control (Weeks 4–10)

1. CNC-routed polystyrene molds produced for standard smooth or lightly textured domes.
2. Fiberglass master molds produced for complex ornamentation requiring multiple identical panels.
3. GRC manufacturing – spray or premix, determined by dome type and ornamentation level.
4. Each panel built up in layers with inspection between passes.
5. 28-day curing commences from the final casting date of the last panel in the batch.
6. QC control specimens tested per ASTM C1230 and BS EN 1170 at 7, 14, and 28 days.
7. Test certificates generated and filed before any panel leaves the factory.

Logistics and Site Preparation (Weeks 8–12)

• Scaffold erection or crane positioning plan developed and approved.
• Stainless steel fixing brackets and anchor bolts installed on the receiving structure – completed and inspected before panels arrive.
• RTA oversized load transport permit applied for if panels exceed standard road width limits.
• Site safety plan submitted to the main contractor and principal authority.

Al Jilani GRC operates dedicated transportation resources for GRC panel delivery across the UAE – an in-house logistics capability that reduces the coordination gaps that cause installation delays on complex dome projects.

Installation and Finishing (Weeks 10–14)

1. Panel lifting in engineered sequence – base ring first, progressing upward to the apex.
2. Structural bracket connections made, documented, and photographed at each panel.
3. Panel-to-panel joint grouting with flexible GRC slurry over foam backer rod.
4. Full dome surface elastomeric waterproofing membrane applied – minimum 2mm dry film thickness.
5. Drainage provision installed at dome base perimeter.
6. Minimum two coats of elastomeric silicone paint applied by brush or roller to ensure full penetration into surface texture.

Handover and Documentation (Weeks 14–16)

The final phase delivers everything the client needs to own and maintain the dome confidently:

• Structural engineer inspection sign-off – with photographic documentation of all fixing points, joints, and surface condition at completion.
• As-built drawings – updated to reflect any field modifications made during installation.
• Maintenance manual – covering inspection frequency, cleaning procedures, joint sealant replacement intervals, and paint recoat schedule.
• Separate warranty certificates for GRC shell material and for the fixing and bracket system.
• Authority completion inspection – where required by Dubai Municipality, IACAD, or Dubai Civil Defence.

Six Core Advantages of GRC for Dome Construction in Dubai

GRC offers six primary advantages over alternative dome materials in the Dubai construction market. These properties together make it the only material that simultaneously addresses Dubai’s structural, climatic, aesthetic, and financial demands for dome construction across all three structure types.

Lightweight: Structural Practicality at Every Scale

The weight comparison:

Material	Weight per m²
GRC dome panels	15–25 kg
Natural stone panels	80–150 kg
Traditional in-situ concrete	200+ kg

Why this weight difference determines project feasibility:

• A GRC dome weighing 1,000 kg can typically be accommodated on an existing structure with post-installed fixings and a structural NOC.
• A stone dome of the same diameter, weighing 8,000 to 12,000 kg, would likely require structural reinforcement costing many times the dome price.
• GRC’s weight advantage also reduces crane capacity requirements, shortens scaffolding hire duration, and allows smaller installation crews – each reducing total installed cost.

Durability and Climate Resistance

• Alkali-resistant glass fibers maintain their reinforcing properties through decades of UAE climate exposure.
• The absence of embedded steel eliminates the primary failure mode of traditional reinforced concrete in Dubai’s coastal zones – steel corrosion, expansion, and concrete spalling.
• GRC domes with correct waterproofing and coating systems have a demonstrated service life of 40 to 50 years in Gulf climates.
• This performance figure is supported by the track record of GRC installations across the Middle East from the material’s widespread regional adoption in the 1980s – many of which remain in serviceable condition today, over 40 years on.

Design Flexibility: Any Form, Any Ornament

What GRC can be shaped into:

• Any geometric profile – spherical, elliptical, faceted, or fully bespoke freeform.
• Any ornamental motif – muqarnas, arabesque, calligraphy, egg-and-dart, acanthus leaf – cast directly into the mold face.
• Any surface finish – smooth, sand-textured, stone effect, exposed aggregate.
• Integral colour using white Portland cement and mineral pigments – eliminates future repainting requirements.

The full design and ornamentation capability available through GRC manufacturing in Dubai supports every project type from a neighbourhood mosque to a flagship commercial hotel. No other affordable dome material combines this design freedom, ornamental precision, and structural adequacy at the same price level.

Thermal Efficiency

• The dome’s curved geometry distributes incoming solar radiation across a larger surface area than a flat roof, reducing peak surface temperature at any single point.
• Integrated PIR (polyisocyanurate) foam or mineral wool insulation layers can be incorporated into the back face of GRC panels during manufacturing, creating a thermally broken dome envelope.
• A GRC dome with integrated PIR insulation can achieve U-values below 0.35 W/m²K – contributing measurably to reducing the building’s air conditioning load.
• Directly relevant to Dubai Green Building Regulations and the Estidama Pearl Rating System – both of which credit envelope thermal performance improvements.

Fire Resistance: Non-Combustible by Composition

• GRC is classified as A1 reaction to fire per EN 13501-1 – the highest non-combustible classification available.
• The material does not burn, does not support flame spread, and does not produce toxic gases in a fire.
• This classification is inherent to GRC’s cement-based composition – it is not a surface coating that can degrade with wear or UV exposure.
• This is precisely why GRC is required – not GRP – for interior commercial dome applications subject to Dubai Civil Defence compliance.

Cost Efficiency Relative to Natural Stone

The cost comparison:

• GRC dome installation costs 60 to 75% less per m² than equivalent carved natural stone at supply stage.
• When the structural implications of stone’s weight are factored in – additional reinforcement, heavier cranes, longer installation duration – the cost differential becomes substantially larger.
• GRC’s 5 to 7-year repaint interval and predictable maintenance profile produce favourable lifecycle economics over a 40-year period.
• Lifecycle cost comparison over 40 years: GRC dome = supply + 6–7 repaint cycles. Natural stone = higher initial cost + complex carved surface repair + specialist cleaning cycles.

Permits and Regulatory Compliance for GRC Dome Installation in Dubai

GRC dome installation in Dubai requires a building permit from Dubai Municipality for any structural addition to an existing building. Mosque projects require IACAD approval first. Commercial interior domes require Dubai Civil Defence fire documentation. Free zone projects need TRAKHEES permits. Heritage zone installations need DCCA design review. Permit timelines range from 2 to 6 weeks for residential and 6 to 14 weeks for commercial projects.

Dubai Municipality Building Permit

Required documentation for permit submission:

1. Structural calculations – signed and stamped by a licensed structural engineer.
2. Architectural drawings – showing the dome and its structural connection to the existing building.
3. NOC from the building’s original structural engineer of record.
4. Current Dubai Municipality contractor licence copy.

Processing: All applications submitted digitally through the Dubai REST platform. Virtual inspections are available for certain project types, reducing approval timelines where applicable.

Consequences of non-compliance:

• Fines for unauthorised construction in Dubai can reach AED 100,000.
• Stop-work orders and mandatory demolition notices are regularly issued.
• This is actively enforced – not a theoretical administrative risk.

IACAD Approval for Mosque Dome Projects

Under Executive Council Resolution No. 25 of 2013 and Administrative Resolution No. 83 of 2020 (as amended by Resolution No. 33 of 2022), any mosque construction, modification, or dome installation in Dubai requires prior written IACAD approval.

The IACAD approval sequence – four steps:

1. Application submitted with architectural drawings and material specifications.
2. IACAD review – up to 15 working days from submission.
3. Upon approval, the applicant has 6 months to appoint a consultant, finalise plans, and obtain a Dubai Municipality building permit.
4. IACAD may extend this window once by up to 3 additional months on written request.

Critical: IACAD approval always precedes Municipality permit submission. These run sequentially – not simultaneously. Build this sequence into the project programme from day one.

Dubai Civil Defence for Commercial Interior Domes

Required documentation for Civil Defence submission:

• Fire test certificates for every material in the dome assembly – GRC shell, insulation, acoustic treatment, paint, and lighting fittings.
• Fire and life safety drawings showing dome position relative to evacuation routes and sprinkler coverage.
• Confirmation that all materials meet Class A non-combustible classification per EN 13501-1.

TRAKHEES for Free Zone Projects

• Applies to projects within JAFZA, Dubai South, and DAFZA.
• Separate from Dubai Municipality – TRAKHEES maintains its own approved contractor list and permit portal.
• Allow an additional 2 to 4 weeks in the project programme for TRAKHEES review.

Heritage Zone Requirements – DCCA Approval

Required for projects in:

• Al Fahidi Historical Neighbourhood (Bastakiya).
• Deira Heritage Zone.
• Shindagha.

DCCA review criteria:

• Dome proportions must maintain visual continuity with the district’s historic architectural character.
• Surface materials and colour palette must be compatible with the heritage environment.
• Ornamentation must reference – not arbitrarily deviate from – established visual language for the heritage setting.

Timeline impact: DCCA review adds 4 to 8 weeks to the overall permit timeline. Engage a heritage consultant alongside your GRC dome contractor from the very beginning of design for projects in these zones.

GRC Domes and Sustainability – The Dubai 2040 Connection

Dubai’s 2040 Urban Master Plan sets a clear sustainability framework for the emirate’s built environment over the next 15 years. GRC dome construction intersects with these goals in several measurable ways.

Embodied Carbon Advantages of GRC:

• GRC is manufactured locally in UAE factories – transport distances measured in tens of kilometres, not thousands.
• GGBS (Ground Granulated Blast Furnace Slag) can replace up to 50% of Portland cement in GRC mixes without compromising performance – substantially reducing embodied carbon.
• Significantly lower embodied carbon than quarried and internationally shipped natural stone.

Thermal Performance Benefits:

• A GRC dome with integrated PIR insulation achieving U-values below 0.35 W/m²K reduces solar heat gain and lowers air conditioning load.
• In Dubai’s climate, air conditioning accounts for 60 to 70% of total building energy consumption – any measurable envelope improvement has an outsized impact on operational carbon.

Green Building Certification Contributions:

Certification	GRC Dome Contribution
LEED v4	Regional Materials credits (UAE manufacture within 800km radius) + Building Product Disclosure credits
Estidama Pearl (LBi-R2)	Building envelope performance calculations for the Pearl rating assessment

The 3D-Printed Mold Frontier:

• Several advanced GRC manufacturers globally are deploying 3D-printed mold production – eliminating the expanded polystyrene (EPS) waste generated from single-use mold manufacture.
• For clients with formal sustainability documentation requirements, asking contractors about their mold waste management process is an increasingly relevant question.

Frequently Asked Questions About GRC Dome Installation Dubai

What is a GRC dome?

A GRC dome is an architectural dome structure made from Glass Fiber Reinforced Concrete – a composite of Portland cement, fine aggregate, and alkali-resistant glass fibers. GRC domes are manufactured in factory-controlled conditions, transported in prefabricated panels, and fixed to the building’s structural support using engineered stainless steel bracket systems. They are used on mosques, villas, and commercial buildings across Dubai and the wider UAE.

How much does GRC dome installation cost in Dubai?

GRC dome installation in Dubai costs approximately:

• AED 12,000 to AED 22,500 – fully installed 2-metre entrance dome.
• AED 24,800 to AED 44,500 – fully installed 3.5-metre villa dome.
• AED 50,500 to AED 91,000 – fully installed 5-metre dome.

These figures include GRC shell, mold, transport, installation, waterproofing, and paint. Mosque and commercial domes are individually priced based on diameter, ornamentation, and structural complexity.

How long does a GRC dome last in Dubai?

A properly manufactured and installed GRC dome in Dubai lasts 40 to 50 years, provided:

• An elastomeric waterproofing membrane is applied at installation.
• Elastomeric silicone paint is reapplied every 5 to 7 years.
• Joint sealant is replaced every 7 to 10 years.
• Biannual inspections are conducted at coastal locations; annual inspections inland.

Can a GRC dome be installed on an existing building?

Yes. GRC dome panels weigh only 15 to 25 kg per m², so post-installed chemical anchors drilled into existing roof slabs and beams can typically accommodate the fixing loads – provided a structural engineer has confirmed the slab’s capacity. No demolition or major structural modification is usually required for a properly engineered GRC dome installation on an existing Dubai building.

What is the difference between GRC and GRP domes?

• GRC (Glass Fiber Reinforced Concrete) – cement matrix – non-combustible (Class A1), UV-stable for 40+ years, capable of capturing precise Islamic ornamental detail.
• GRP (Glass Reinforced Plastic) – polymer resin matrix – lighter but combustible, prone to UV yellowing within 5 to 8 years in Dubai, less capable of deep ornamental detail.

GRC is the correct choice for mosque domes, formal villa entrances, and all interior commercial domes requiring Dubai Civil Defence fire compliance.

Do I need a permit to install a GRC dome in Dubai?

Yes. Any structural addition to an existing Dubai building requires:

• A building modification permit from Dubai Municipality.
• A NOC from the building’s original structural engineer of record.
• For mosque projects: prior written approval from IACAD.

Processing takes 2 to 6 weeks for residential projects. Installing without a permit risks fines up to AED 100,000 and a mandatory demolition order.

What is the difference between GRC and GRG?

• GRC (Glass Fiber Reinforced Concrete) – cement-based – designed for exterior architectural elements requiring weather resistance, structural strength, and fire compliance.
• GRG (Glass Reinforced Gypsum) – gypsum-based – designed for interior decorative features like majlis ceiling domes, ornamental panels, and mouldings where weight is critical but weather exposure is not a factor.

The choice depends entirely on whether the application is interior or exterior, and what structural and fire performance the project requires.

How is a GRC dome manufactured in Dubai?

A GRC dome is manufactured in a controlled factory environment using either:

• Spray GRC method – cement slurry and glass fibers sprayed simultaneously onto a mold at 10–15mm thickness.
• Premix GRC method – fibers blended into the mix before casting at 15–25mm thickness.

After casting, panels undergo a mandatory 28-day curing period and QC testing per ASTM C1230 and BS EN 1170 before leaving the factory. You can review the full GRC manufacturing process and service scope for a complete picture of what the production chain involves.

Which GRC dome contractor should I choose in Dubai?

Choose a GRC dome contractor in Dubai who can demonstrate:

• GRCA membership or equivalent standards compliance.
• ISO 9001 certification.
• An independent structural engineer’s stamp on the fixing design.
• QC test certificates per ASTM or BS standards.
• Verifiable physical project references you can visit in person.

Al Jilani GRC’s project portfolio – covering mosque domes across Dubai, villa communities such as Tilal Al Ghaf and DAMAC Lagoons, and commercial and civic structures – represents the kind of verified, diverse project experience that differentiates a credible GRC dome contractor from a price-only operator.

Conclusion – How to Get Your GRC Dome Installation Right in Dubai

GRC dome installation in Dubai is not a commodity purchase. It is a structured, engineered project delivery process that – when executed correctly – creates structures of real architectural quality that will perform for four decades or more. When executed carelessly, it creates maintenance liabilities that appear within 3 to 5 years of handover.

The three structure types each make fundamentally different demands:

• Mosque domes – require ornamentation fidelity to Islamic design tradition, mandatory IACAD regulatory compliance, acoustic design from day one, and fixing systems stamped by a licensed structural engineer.
• Villa domes – require structural assessment of the existing building before production begins, Dubai Municipality permit compliance, and customisation that adds genuine, lasting property value.
• Commercial domes – require structural engineering beyond what the GRC contractor alone can deliver, Dubai Civil Defence fire compliance for interior applications, and a cost model that accounts for long-term brand value alongside construction cost.

The material – GRC – handles all three contexts with the same six core properties:

1. Lightweight – feasible on any existing UAE building.
2. Climatically proven for Gulf conditions over 40+ years.
3. Design-flexible to any ornamentation level or geometric profile.
4. Non-combustible – Class A1 fire classification.
5. Thermally contributory – reduces building cooling load.
6. Cost-efficient relative to natural stone by 60 to 75%.

The correct project sequence – follow this every time:

1. Start with a structural engineer – not a contractor’s price quotation.
2. Secure every authority approval before manufacturing begins.
3. Select your contractor by quality documentation, certifications, and physical project references – not by the lowest figure.
4. Budget completely – including mold cost, installation, and waterproofing – not just the GRC shell supply price.

For a confidential discussion about your mosque, villa, or commercial GRC dome installation project in Dubai, you can reach the Al Jilani GRC team directly – with experience across Dubai Municipality-approved projects, a full design-to-installation service, and an ISO-certified manufacturing process backed by international standards compliance. You can also explore the full project gallery to see the range and quality of completed GRC work across the UAE.

Your GRC dome – whether it rises above a neighbourhood mosque in Deira, crowns an entrance portico in Arabian Ranches, or anchors a hotel lobby in Downtown Dubai – should be exactly what Dubai’s skyline keeps delivering: architecture that reads as ancient, performs with precision, and was built without compromise for the long term.
